Here are our Camburg 1.50 uniball upper arms for the Ford Raptor. These arms are made with US 4130 chromoly tubing, heat treated stainless steel hardware, and US made FK 1.50″ uni-balls. Main improvements are 7/8″ heim pivots for more adjustment, less flex, and a more precision cycle of travel. The strength of these upper arms are far superior to the factory units because of the much larger tube size and the huge 1.50″ uni-ball which is the same version as on our Trophy Truck. These upper arms will also allow more wheel travel when combined with other aftermarket shocks.

• Increases usable wheel travel
• Corrects camber and caster
• Eliminates weak factory joints
• Made in the USA FK 1.50″ Uniballs and JMX 7/8″ Heims
• Heat-treated Stainless Steel Heim & Uniball Spacers
• Will not fit OEM stock wheels, use our 1.25″ uniball version

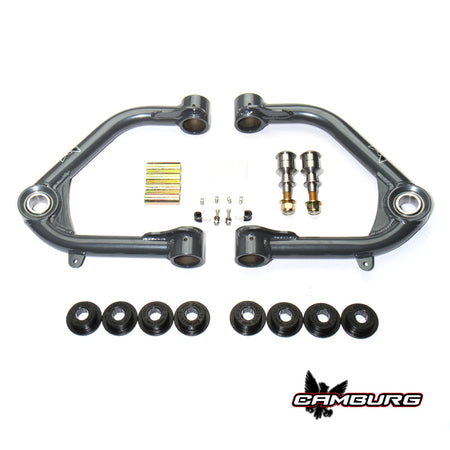

For the ’10-14 Ford Raptors our 1.25″ uniball upper arms use polyurethane bushing versus heims like on our 1.50″ uniball arms. This keeps the cost down with less maintenance. Also by using a smaller uniball you’re able to use the factory offset wheels and tires. When running larger 37″ tires you want to use a zero offset wheel.

When lifting your truck, the stock upper arms become the limiting factor and hold back your suspensions performance. Our Camburg upper arms address these issues and more.  Replacing the stock ball-joint  with a larger 1.25 uni-ball bearing we’re able to gain wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We build more caster and change the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling.

Using the latest CAD/CAM engineering software we design these arms to the strictest standards using our FARO laser scan arm to model the OEM parts and frames. Manufactured in-house, we have the tubes CNC laser cut and bent, then are MIG welded in precision fixtures before sending out to be sandblasted and powder-coated. Our in-house CNC machine shop makes all the machined parts including the uniball mis-alignment spacers from heat-treated stainless steel. We pride ourselves in producing the best parts available under our own roof and control.

• Increases usable wheel travel
• Corrects camber and caster
• Eliminates weak factory ball-joints
• 4130 chromoly construction
• Laser cut & CNC bent tubes MIG welded
• CAD/CAM engineered
• Polyurethane frame pivot bushings with grease-able zerk fittings
• FK 1.25″ PTFE-lined uniballs pre-installed
• Steel gray powder-coating
• All necessary hardware included and ready to install
• Made in the USA
• Designed for 1-3″ of lift

DESCRIPTION

Update: Ford introduced a cast steel knuckle/spindle (painted black) in mid 2020 which has a different upper ball-joint taper than the aluminum versions (raw silver). We now include both sets of lower uniball spacers with our arms so everyone has what they need in one part number.

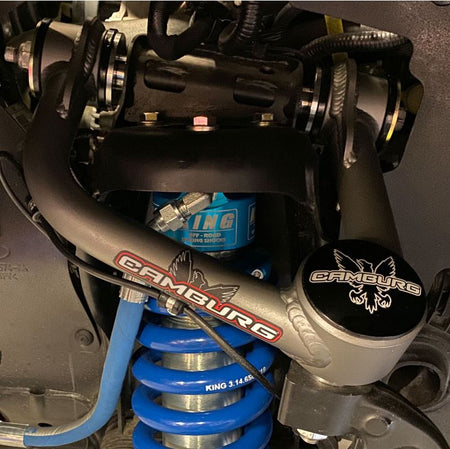

When lifting your truck, the stock upper arms become the limiting factor and hold back your suspensions performance. Our Camburg upper arms address these issues and more.  Replacing the stock ball-joint  with a larger 1.25 uni-ball bearing we’re able to gain wheel travel with a part that is considerably stronger and will last longer under extreme conditions. We build more caster and change the camber curve to correct geometry so the vehicle aligns correctly and improves driving characteristics and handling. Our design incorporates a billet aluminum cover for the top of the uniball to keep dirt and other contaminants from working their way into the uniball. This cap is a slight press-fit and uses an o-ring seal.

Using the latest CAD/CAM engineering software we design these arms to the strictest standards using our FARO laser scan arm to model the OEM parts and frames. Manufactured in-house, we have the tubes CNC laser cut and bent, then are MIG welded in precision fixtures before sending out to be sandblasted and powder-coated. Our in-house CNC machine shop makes all the machined parts including the uniball mis-alignment spacers from heat-treated stainless steel. We pride ourselves in producing the best parts available under our own roof and control.

• Increases usable wheel travel
• Corrects camber and caster
• Eliminates weak factory ball-joints
• Thicker .156″ wall round tubing
• Laser cut & CNC bent tubes MIG welded
• CAD/CAM engineered
• Polyurethane frame pivot bushings with grease-able zerk fittings
• FK 1.25″ PTFE-lined uniballs pre-installed
• Steel gray powder-coating
• All necessary hardware included and ready to install
• Made in the USA
• Designed for 1-3″ of lift
• Includes uniball spacers for both aluminum and steel OEM knuckles

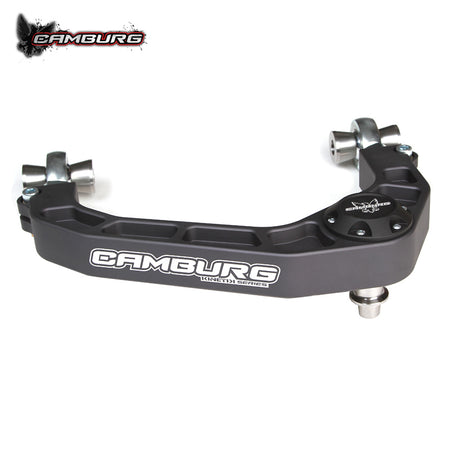

We’re proud to release our new line of Camburg KINETIK Series billet upper control arms for the 2004-2020 Ford F-150’s.

Countless hours were spent designing and refining these arms to the point where they met our high standards. CAD designing and machining gave us the ability to bring some new design elements and features to the table. We CNC machine these from aerospace quality 6061 billet aluminum, then send them out to be bead blasted, Type II anodized gun metal gray and have our Camburg logo laser etched.

Like our tubular arms we use a larger FK 1.25” uniball that has a PTFE liner for increased strength and mis-alignment for maximum useable wheel travel. Made in the USA these are far superior to the cheaper and smaller imports other companies use. Adapting the uniball to the spindle/knuckle is done using model specific spacers that match the factory taper precisely. These are machined from heat-treated stainless steel and are a one piece design for increased strength. No drilling or modifications are needed. The 1.25” uniball gives us the ability to run a larger and stronger 9/16” 12 point bolt with a low profile bolt-on uniball cap to resist the elements.

Using larger and stronger FK 7/8” chromoly heim joints allows for additional camber and caster adjustment if needed with larger 6” suspension kits or damaged frames. Using a heim joint also eliminates flexing/deflection under hard use and braking with zero binding when in use. Using AN/Mil-spec hardware we have a single pinch bolt and secondary jam nut to insure the heim is secure with the rigors of off-road use.

• New V2 design
• Increases usable wheel travel
• Corrects camber and caster
• Eliminates weak factory ball-joints
• CNC machined 6061 billet aluminum
• CAD/CAM engineered
• FK 7/8″ heim joints for adjustable camber and caster
• FK 1.25″ PTFE-lined uniballs pre-installed
• Anodized and laser etched
• All necessary hardware included and ready to install
• Made in the USA
• Designed for 1-3″ of lift
•


• CNC machined from aircraft quality 6061 aluminum
• FK 7/8″ heim joints
• FK 1.25″ uniballs
• Corrected caster & camber geometry

DESCRIPTION

Our Camburg KINETIK Series billet upper control arms for the 2017-23 Gen2 & Gen3 Ford Raptors have been the benchmark in the industry and we’re the first to work with the 2019+ models with the FOX Live Valve electronic suspension.

Countless hours were spent designing and refining these arms to the point where they met our high standards. CAD designing and machining gave us the ability to bring some new design elements and features to the table. We CNC machine these in-house from aerospace quality 6061 billet aluminum, then send them out to be bead blasted, Type II anodized gun metal gray and have our Camburg logo laser etched.

Like our tubular arms we use a larger FK 1.25” uniball that has a PTFE liner for increased strength and mis-alignment for maximum useable wheel travel. Made in the USA these are far superior to the cheaper and smaller imports other companies use. Adapting the uniball to the spindle/knuckle is done using model specific spacers that match the factory taper precisely. These are machined from heat-treated stainless steel and are a one piece design for increased strength. No drilling or modifications are needed. The 1.25” uniball gives us the ability to run a larger and stronger 9/16” 12 point bolt with a low profile press-on uniball cap to resist the elements.

Using larger and stronger FK 7/8” chromoly heim joints allows for additional camber and caster adjustment if needed. Using a heim joint also eliminates flexing/deflection under hard use and braking with zero binding when in use. Using AN/Mil-spec hardware we have a single pinch bolt and secondary jam nut to insure the heim is secure with the rigors of off-road use.

For 2019+ models that have a position sensor incorporated into the FOX electronic suspension, we have stainless brackets that attach to our arms that the sensor linkage attaches to and we supply a drill template to drill two small holes in the existing mount for proper positioning. It’s a very simple process that anyone can do.

• NEW V2 design
• Increases usable wheel travel
• Corrects camber and caster
• Eliminates weak factory ball-joints
• CNC machined 6061 billet aluminum
• CAD/CAM engineered
• FK 7/8″ heim joints for adjustable camber and caster
• FK 1.25″ PTFE-lined uniballs pre-installed
• Anodized and laser etched
• All necessary hardware included and ready to install
• Made in the USA
• Designed for 1-3″ of lift
• Fits Raptor and Raptor R models with factory wheels & 35-37″ tires
